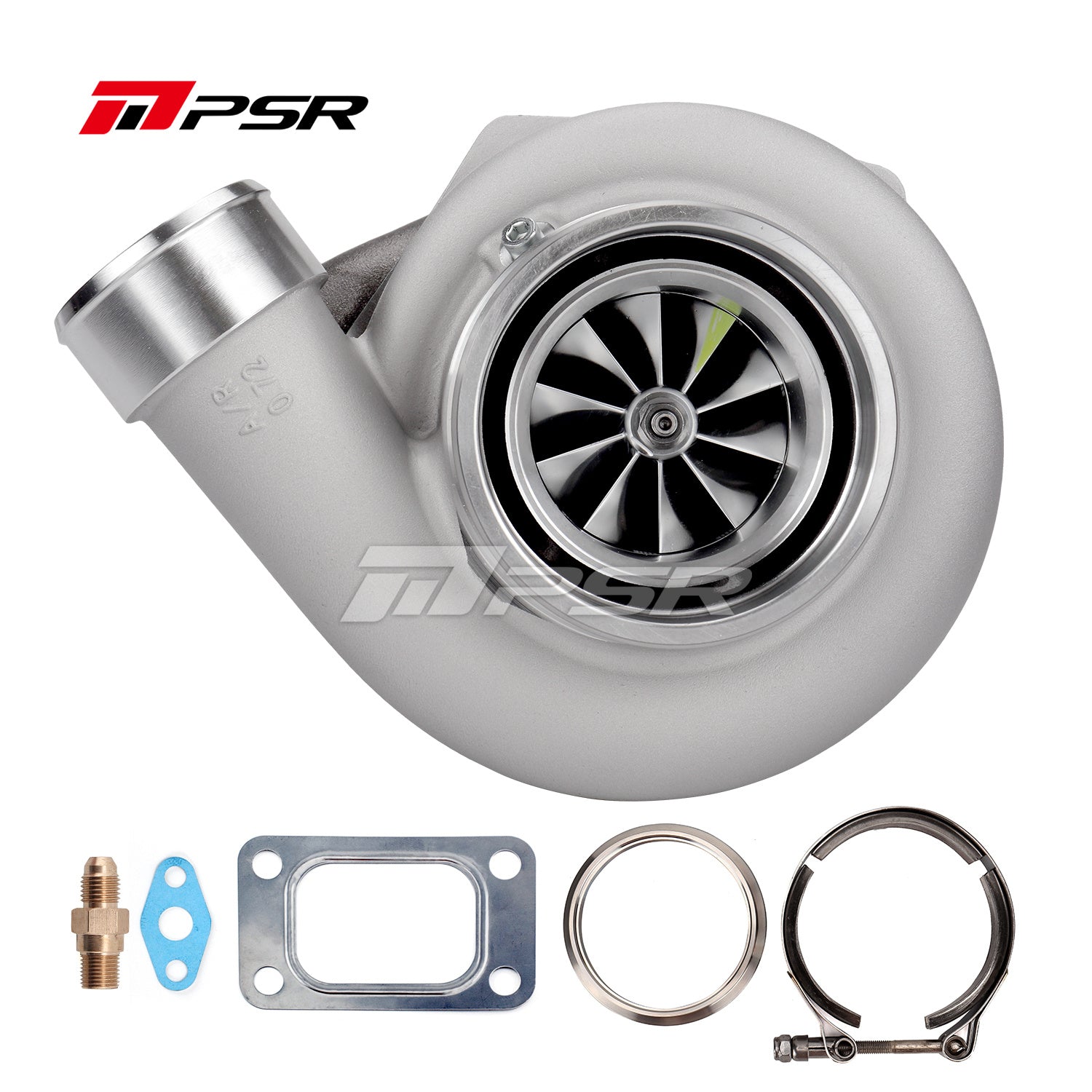

Pulsar PSR3584 Gen 3 Turbo
Pulsar PSR3584 Gen 3 Turbo

Pulsar PSR3584 Gen 3 Turbo

SKU: 102135509
icon
Display Area for Options
No option or configuration is disabled
$1,225.00
$1,225.00
Compressor Housing: Standard
Turbine Housing: .63 T3 V Band
Subtotal: $1,225.00
Pulsar PSR3584 Gen 3 Turbo

Pulsar PSR3584 Gen 3 Turbo

$1,225.00
Pulsar PSR3584 Gen 3 Turbo
Pulsar PSR3584 Gen 3 Turbo

Pulsar PSR3584 Gen 3 Turbo

$1,225.00
Compressor Housing: Standard
Turbine Housing: .63 T3 V Band
Description
Description
x
  • Dual Ceramic Ball Bearing System
  • 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c 10 Blade Turbine Wheel with High Horsepower
  • Cover Integrated with the Speed Sensor Port
  • 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, T4 0.82 V-Band outlet etc. turbine housings in option
  • V-Band Flange kit(s) for the exhaust housing included
  • Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
  • Stronger Turbine Wheel for High flow



    • Compressor Wheel: 67*84mm
    • Turbine Wheel: 74*66mm
    • Compressor Inlet: 4.0” Hose
    • Compressor Outlet: 2.5” Hose
    • Turbine Inlet: T3, T4, or 2.5″ V-Band
    • Turbine Outlet: 3″ V-Band (3.55″OD)
    • Oil Feed: -4 AN connect to the Oil Restrictor
    • Oil Drain: Std T3 Flange
    • Water In/Outlet: M14*1.5
    • We highly recommended running water cooling for better durability
    • Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp



  • Based off our popular GTX3584RS series turbo, This is very similar but with the larger 66mm rear wheel.

  • PSR3584 GEN3 TURBO comes with stronger turbine wheel for high flow.
