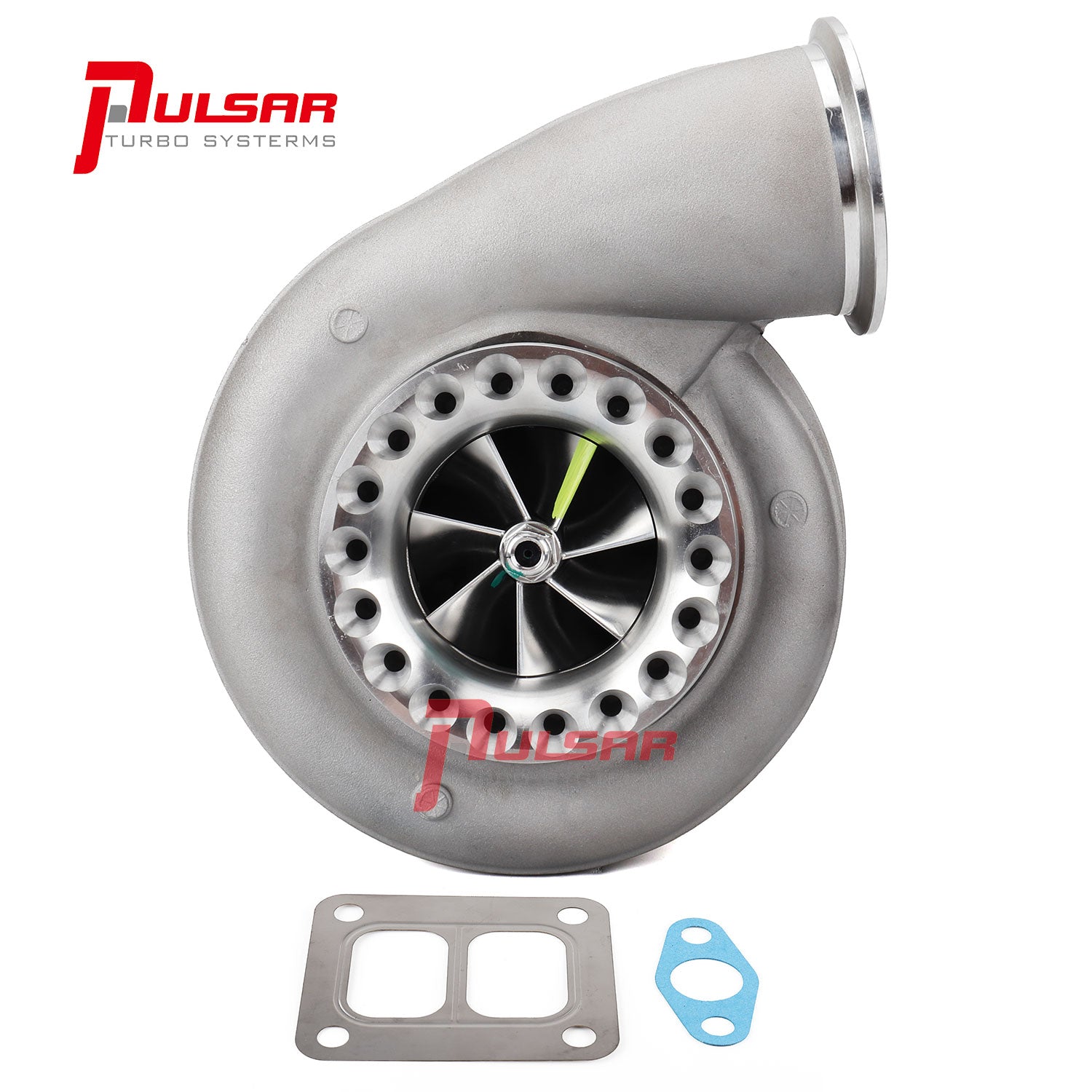

PULSAR Billet S480 Turbo with 96mm Turbine wheel
PULSAR Billet S480 Turbo with 96mm Turbine wheel
PULSAR Billet S480 Turbo with 96mm Turbine wheel
PULSAR Billet S480 Turbo with 96mm Turbine wheel
PULSAR Billet S480 Turbo with 96mm Turbine wheel
PULSAR Billet S480 Turbo with 96mm Turbine wheel

PULSAR Billet S480 Turbo with 96mm Turbine wheel

SKU: 100140078
icon
Display Area for Options
No option or configuration is disabled
$1,275.00
$1,275.00
Turbine Housing Options: T6 1.32 A/R
Add Turbine Outlet Flange and Clamp 4": No
Add Turbine Outlet Flange and Clamp 5" or 5' to 4": No
Subtotal: $1,275.00
PULSAR Billet S480 Turbo with 96mm Turbine wheel

PULSAR Billet S480 Turbo with 96mm Turbine wheel

$1,275.00
PULSAR Billet S480 Turbo with 96mm Turbine wheel
PULSAR Billet S480 Turbo with 96mm Turbine wheel
PULSAR Billet S480 Turbo with 96mm Turbine wheel
PULSAR Billet S480 Turbo with 96mm Turbine wheel
PULSAR Billet S480 Turbo with 96mm Turbine wheel
PULSAR Billet S480 Turbo with 96mm Turbine wheel

PULSAR Billet S480 Turbo with 96mm Turbine wheel

$1,275.00
Turbine Housing Options: T6 1.32 A/R
Add Turbine Outlet Flange and Clamp 4": No
Add Turbine Outlet Flange and Clamp 5" or 5' to 4": No
Description
Description
x
  • 7+7 blades 80*113mm billet compressor wheel with extended tip technology for the ultimate in aerodynamics
  • S400 96*88mm Inconel 713 turbine wheel for high-temperature operation
  • T6 Divided turbine housings in 1.32A/R? or 1.58 A/R with 5″ V Band Outlet 5.75 OD Marmon flange
  • T4 Divided turbine housing in 1.25 A/R 0r 1.10 A/R
  • Compressor flow rated at 120 lb/min capabilities ranging from 750 to 1400 horsepower



Description

  • Compressor Wheel: 80*113mm
  • Turbine Wheel: 96*88mm or 83*74mm
  • Compressor Inlet: 5″ Hose
  • Compressor Outlet: V-Band
  • Turbine Inlet: T6 or T4
  • Turbine Outlet: 5.75″ Marmon(T6) or 4″ V-Band(T4)
  • Oil Feed: 1/4 NPT
  • Oil Drain: Std T6 Drain Flange
  • Outlet Flange and Clamp not included
