- Compressor Wheel: 58*71mm
- Turbine Wheel: 60*55mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: T3 or T4
- Turbine Outlet: 3″ V-Band
- Water Ports: 2-M14 X 1.5
- Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
- Oil Outlet: Std T3 Oil Drain Flange
- Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp
- 11 options of turbine housing: Dual vband 0.72A/R; Dual vband 0.83A/R; Dual vband 1.01A/R; T3 0.72A/R; T3 0.83A/R; T4 0.82A/R; T4 divided 0.85A/R; Dual vband 0.49A/R IWG; Dual vband 0.72A/R IWG; Dual vband 0.92A/R IWG; T25 0.72A/R IWG

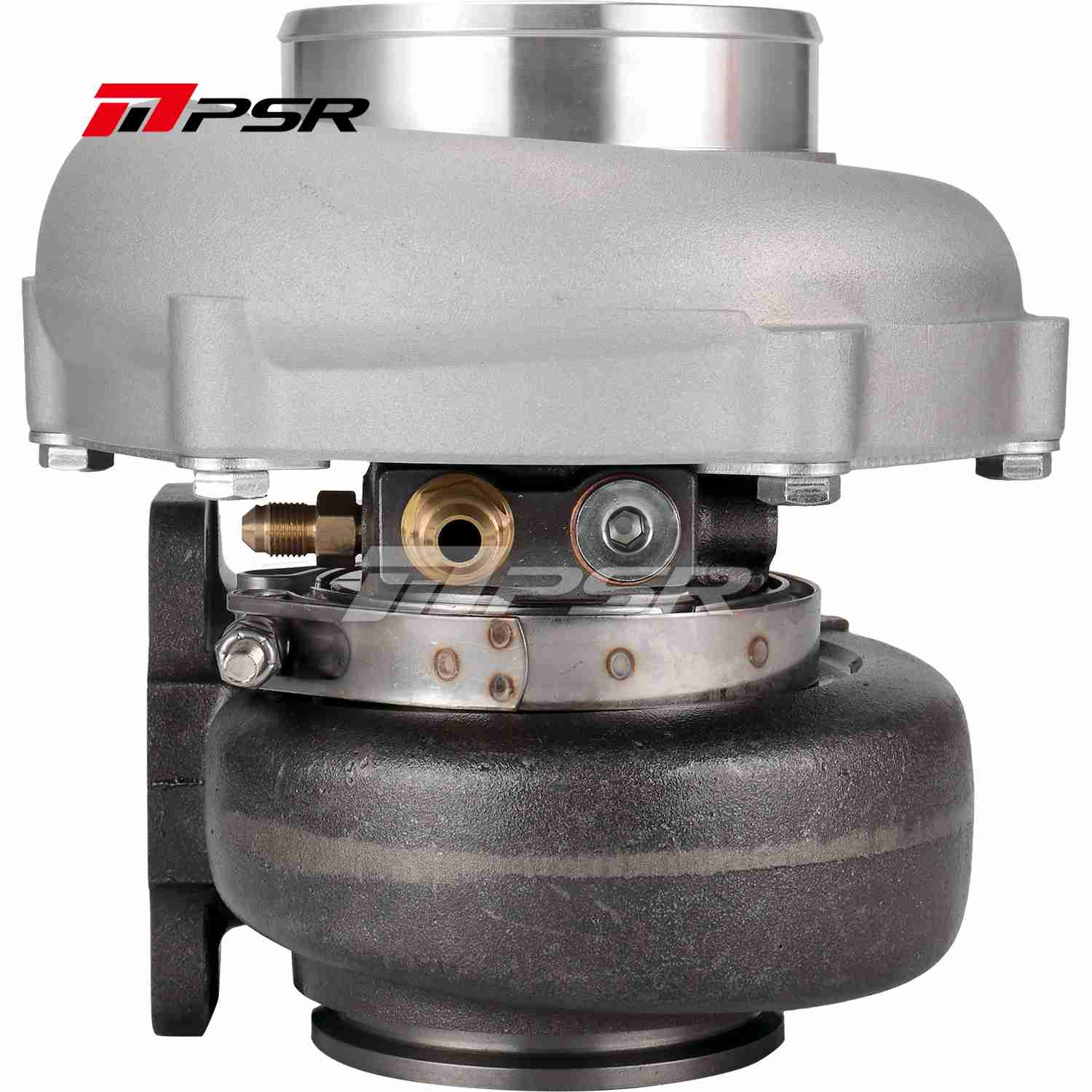

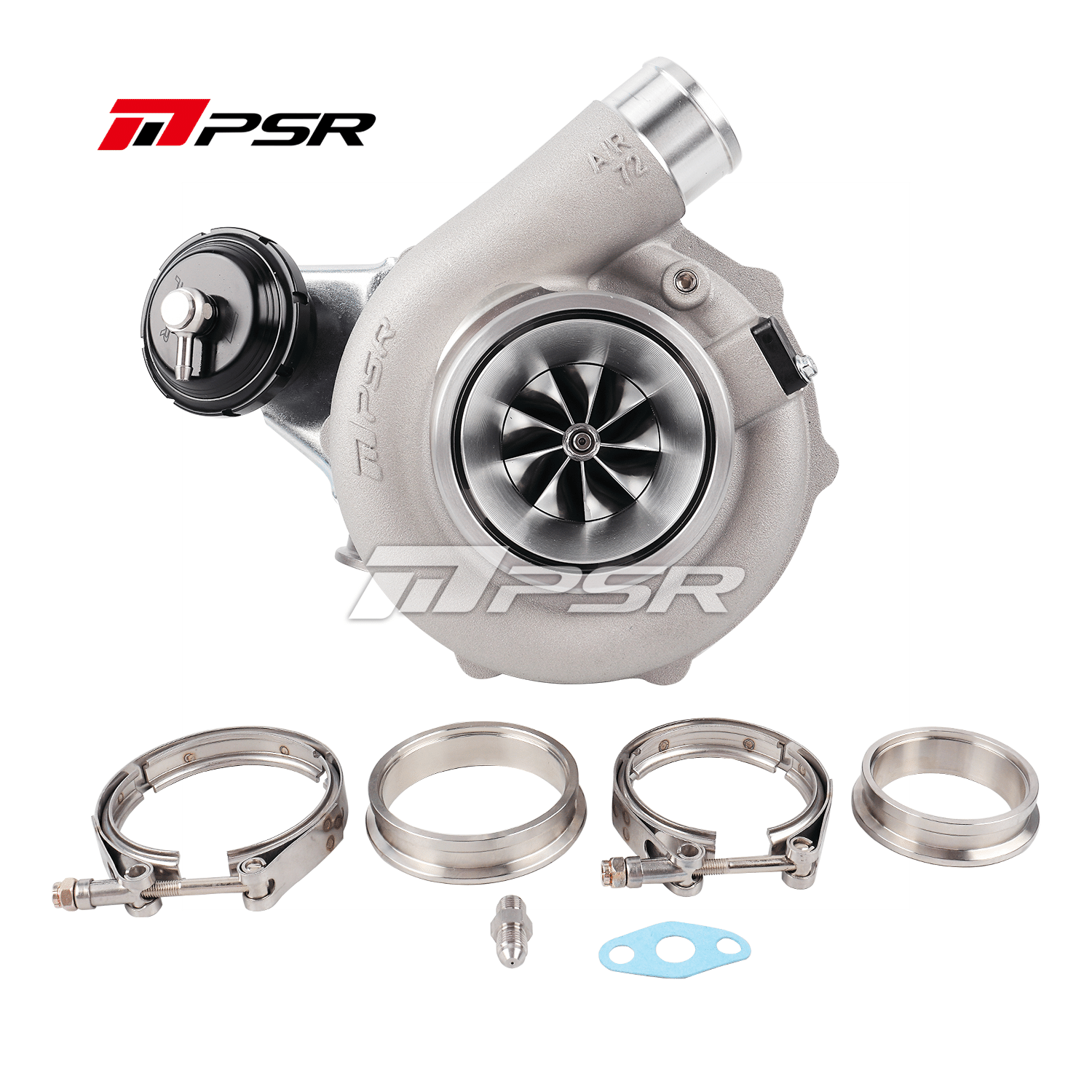

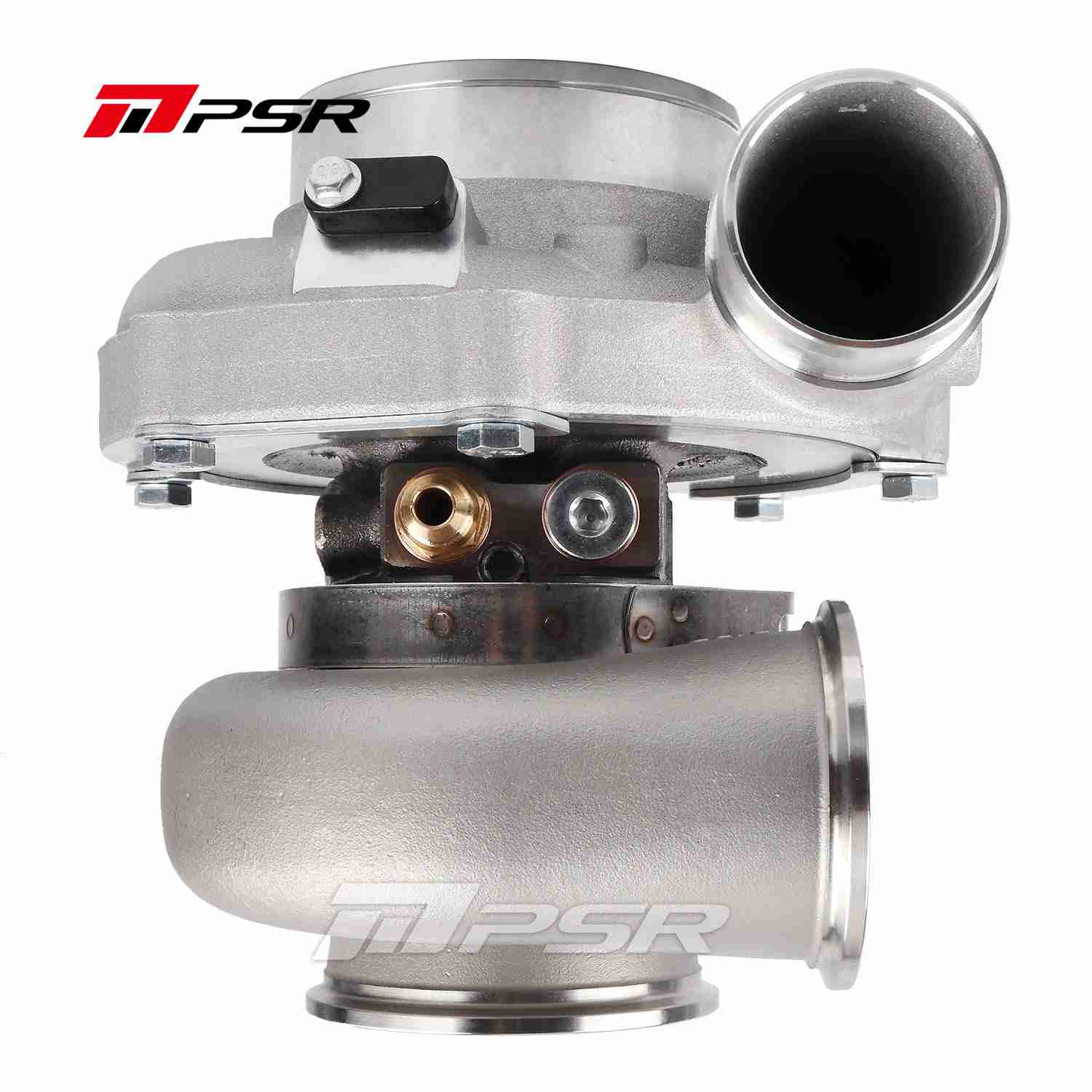

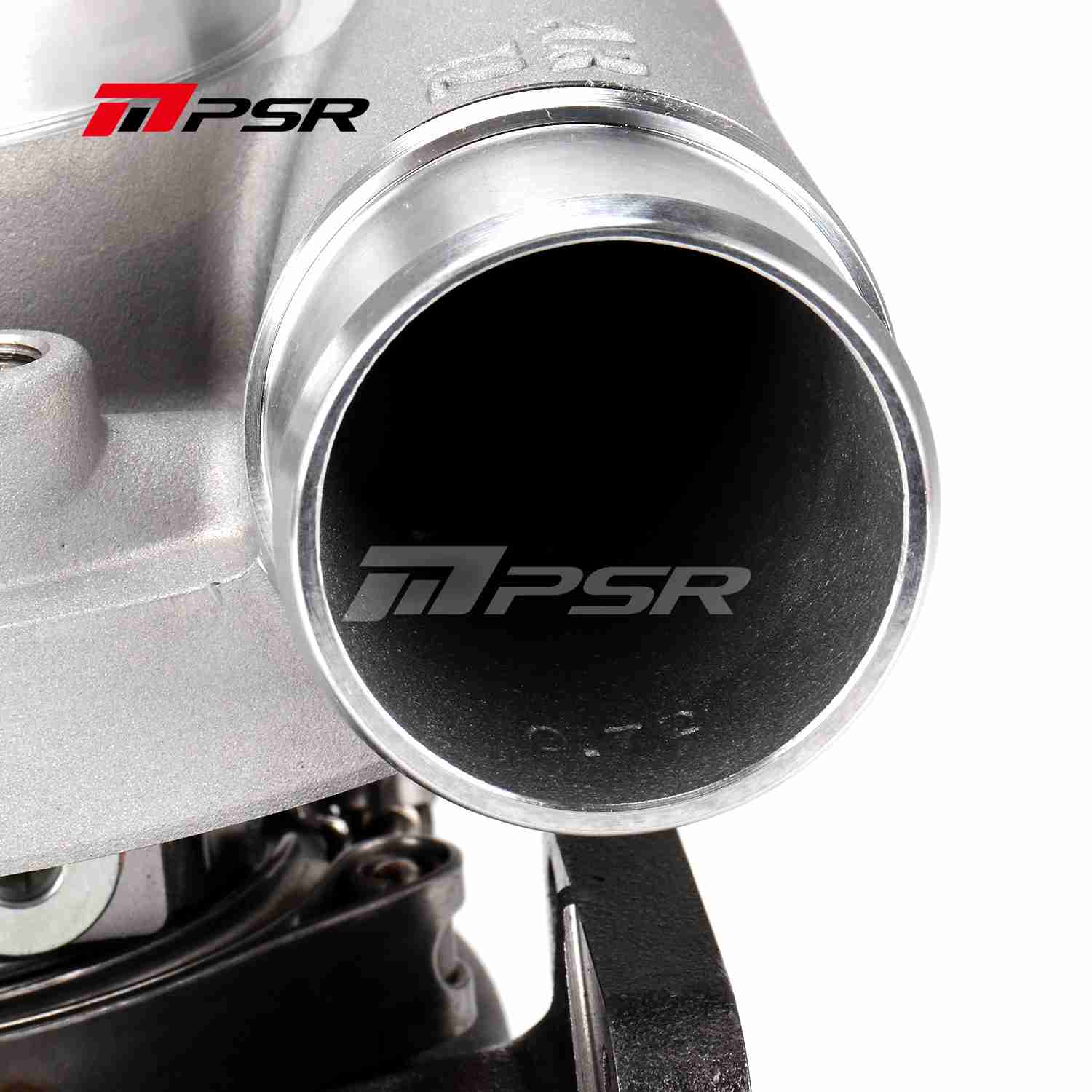

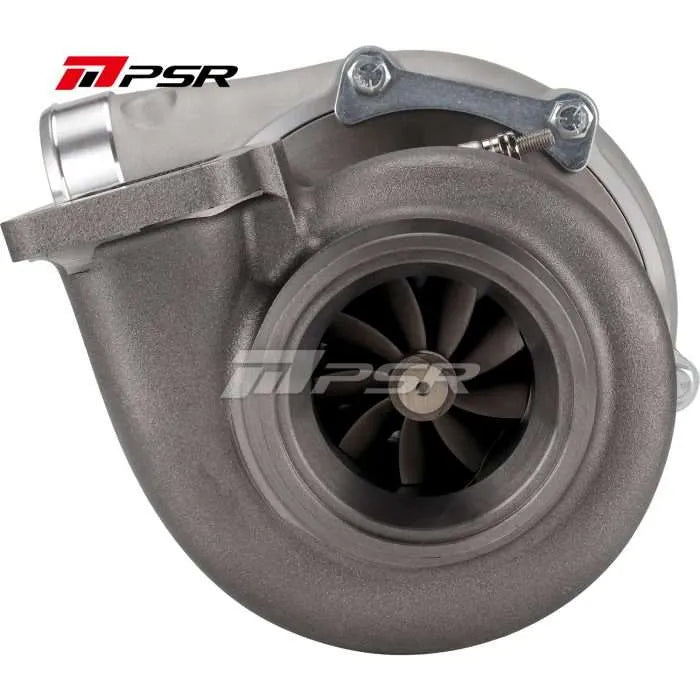

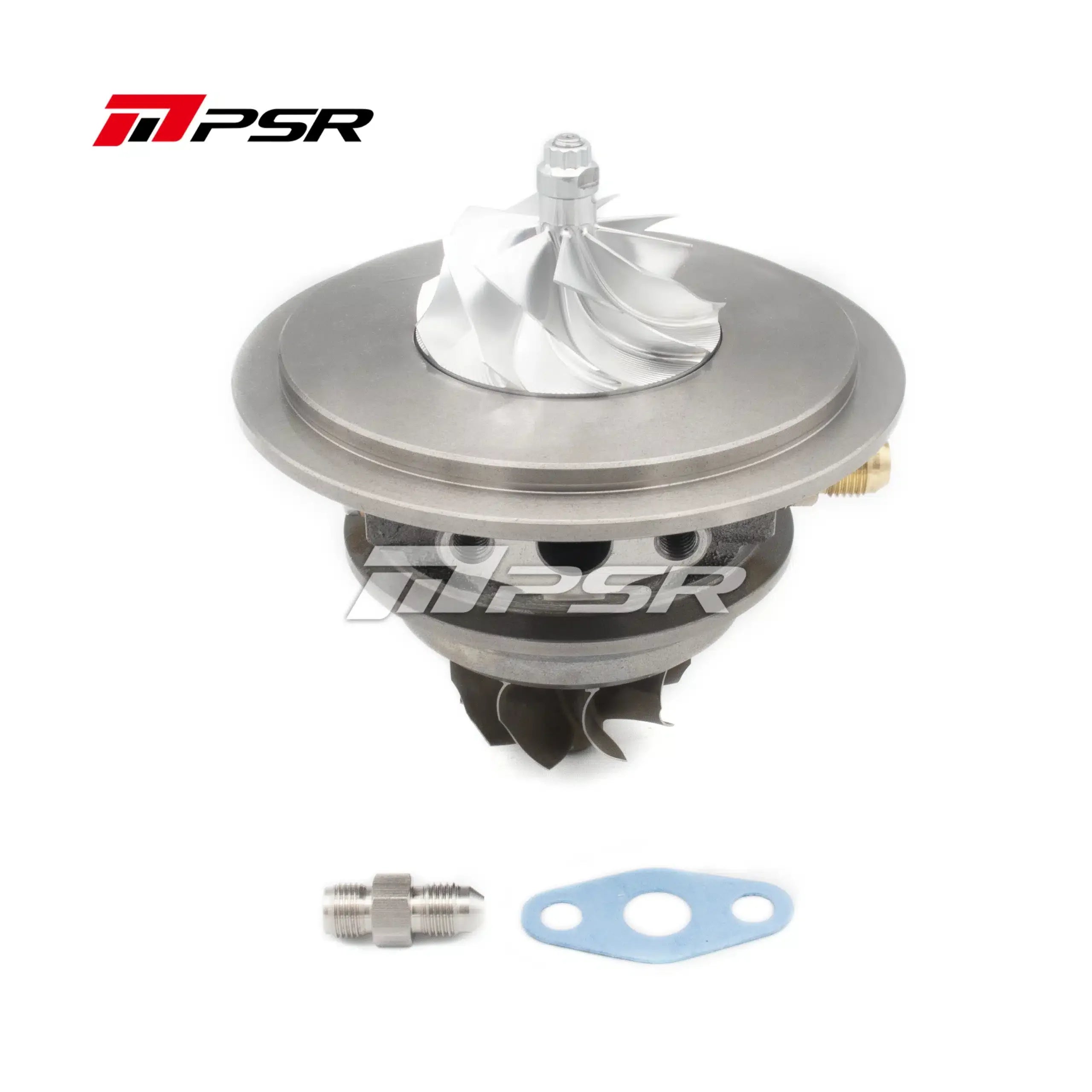

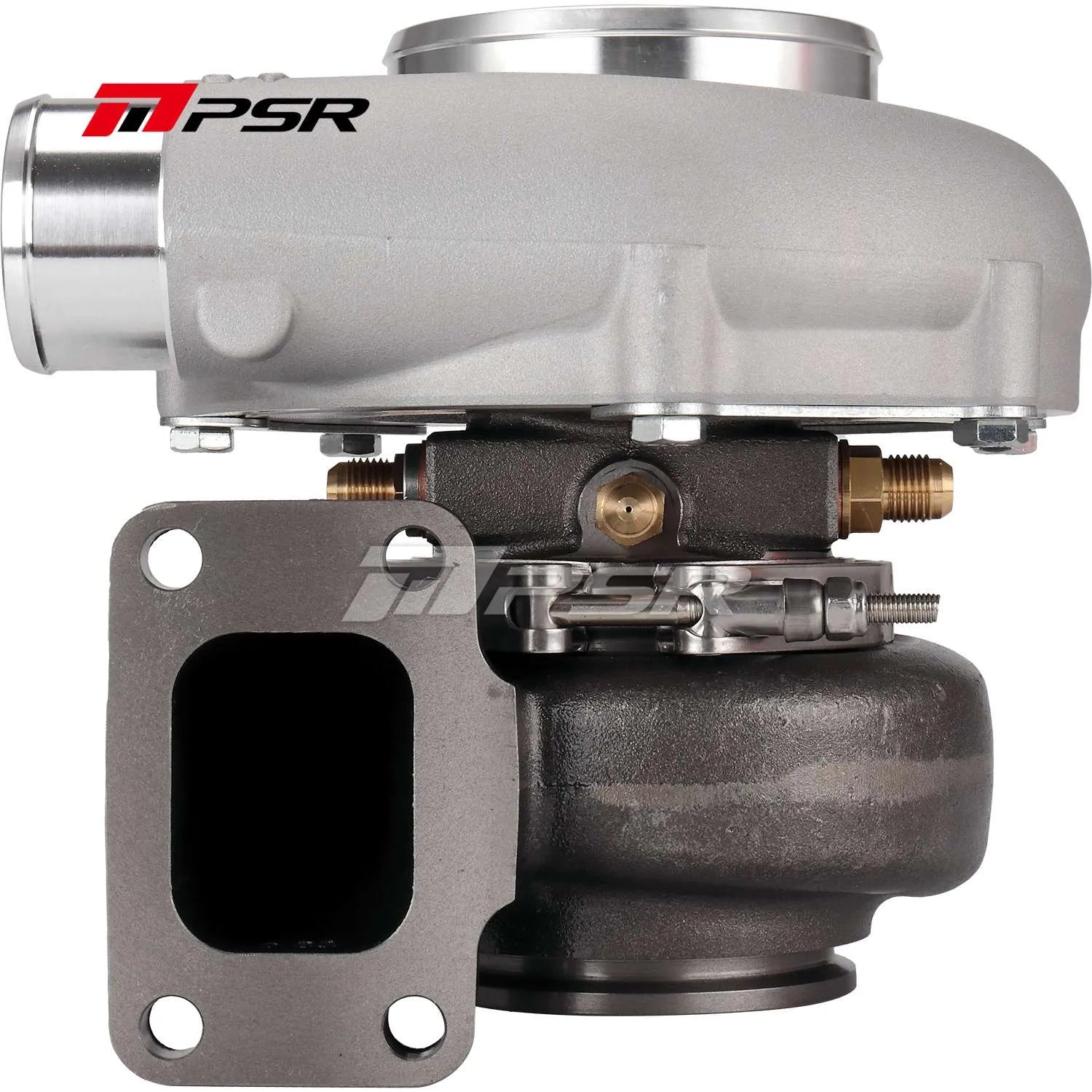

PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo
SKU:
112152601
Display Area for Options
No option or configuration is disabled
- $1,175.00
- $1,175.00
- Unit price
- per
Subtotal:
$1,175.00
Couldn't load pickup availability
Description
x- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 9 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade PTG-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- Internally Wastegated, Billet Actuator(Working pressure 12 psi)
Description
