PSR Class Legal 6782G Dual Ball Bearing Turbocharger
PSR Class Legal 6782G Dual Ball Bearing Turbocharger
PSR Class Legal 6782G Dual Ball Bearing Turbocharger
PSR Class Legal 6782G Dual Ball Bearing Turbocharger
PSR Class Legal 6782G Dual Ball Bearing Turbocharger

PSR Class Legal 6782G Dual Ball Bearing Turbocharger

SKU: 102145218
icon
Display Area for Options
No option or configuration is disabled
$1,849.00
$1,849.00
Compressor Housing Option: Standard
Turbine Housing Option: T4 Open 1.15 A/R
Subtotal: $1,849.00
PSR Class Legal 6782G Dual Ball Bearing Turbocharger

PSR Class Legal 6782G Dual Ball Bearing Turbocharger

$1,849.00
PSR Class Legal 6782G Dual Ball Bearing Turbocharger
PSR Class Legal 6782G Dual Ball Bearing Turbocharger
PSR Class Legal 6782G Dual Ball Bearing Turbocharger
PSR Class Legal 6782G Dual Ball Bearing Turbocharger
PSR Class Legal 6782G Dual Ball Bearing Turbocharger

PSR Class Legal 6782G Dual Ball Bearing Turbocharger

$1,849.00
Compressor Housing Option: Standard
Turbine Housing Option: T4 Open 1.15 A/R
Description
Description
x

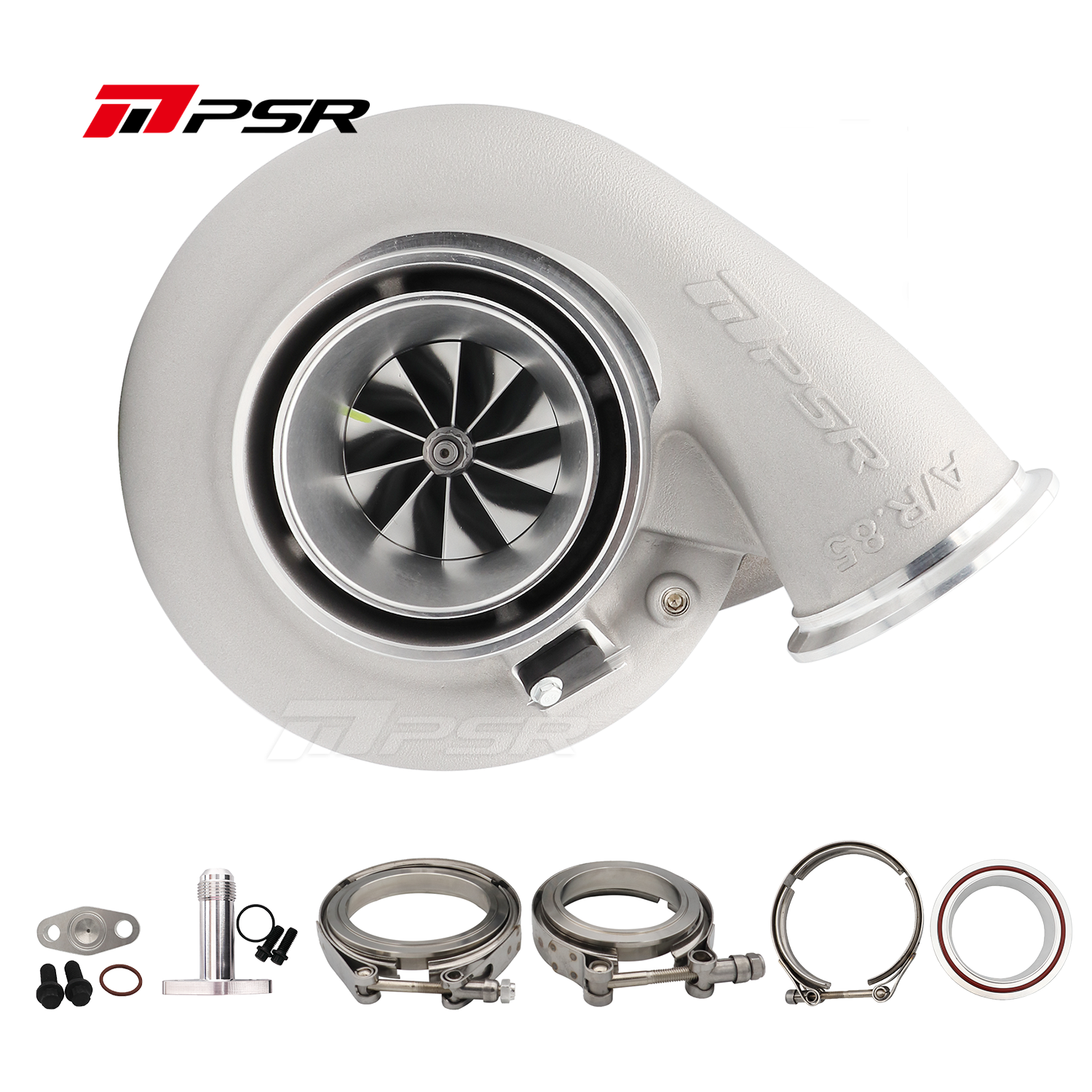

  • PSR Class Legal Turbo with 67/98mm Compressor wheel
  • Dual ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion
  • 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
  • 9 Blade G-Aero Inconel 713c turbine wheel
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
  • Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turbo. Inlet, 3.5”/4” flange kit for Turbo. Outlet and oil Drain Fitting kit are included by default

  • -Compressor Wheel: 67*98mm

    -Turbine Wheel: 81.6*89mm

    -Compressor Inlet: 5″ Hose

    -Compressor Outlet: 3″ V-Band

    -Water Ports: -6AN

    -Oil Feed: Flange Required

    -Oil Drain: Angle 15°, -12AN(O-Ring sealed Flange Kit Incl’)

    -Eight Turbine housings in Option:

    1. T4(Divided) inlet, Vband outlet, 1.01 A/R
    2. T4(Open) inlet, Vband outlet, 1.15 A/R
    3. T4(Divided) inlet, Vband outlet, 1.15 A/R
    4. T4(Divided) inlet, Vband outlet, 1.28 A/R
    5. T4(Divided) inlet, Vband outlet, 1.44 A/R
    6. Vband inlet and Vband outlet, 1.01 A/R
    7. Vband inlet and Vband outlet, 1.15 A/R
    8. Vband inlet and Vband outlet, 1.28 A/R
