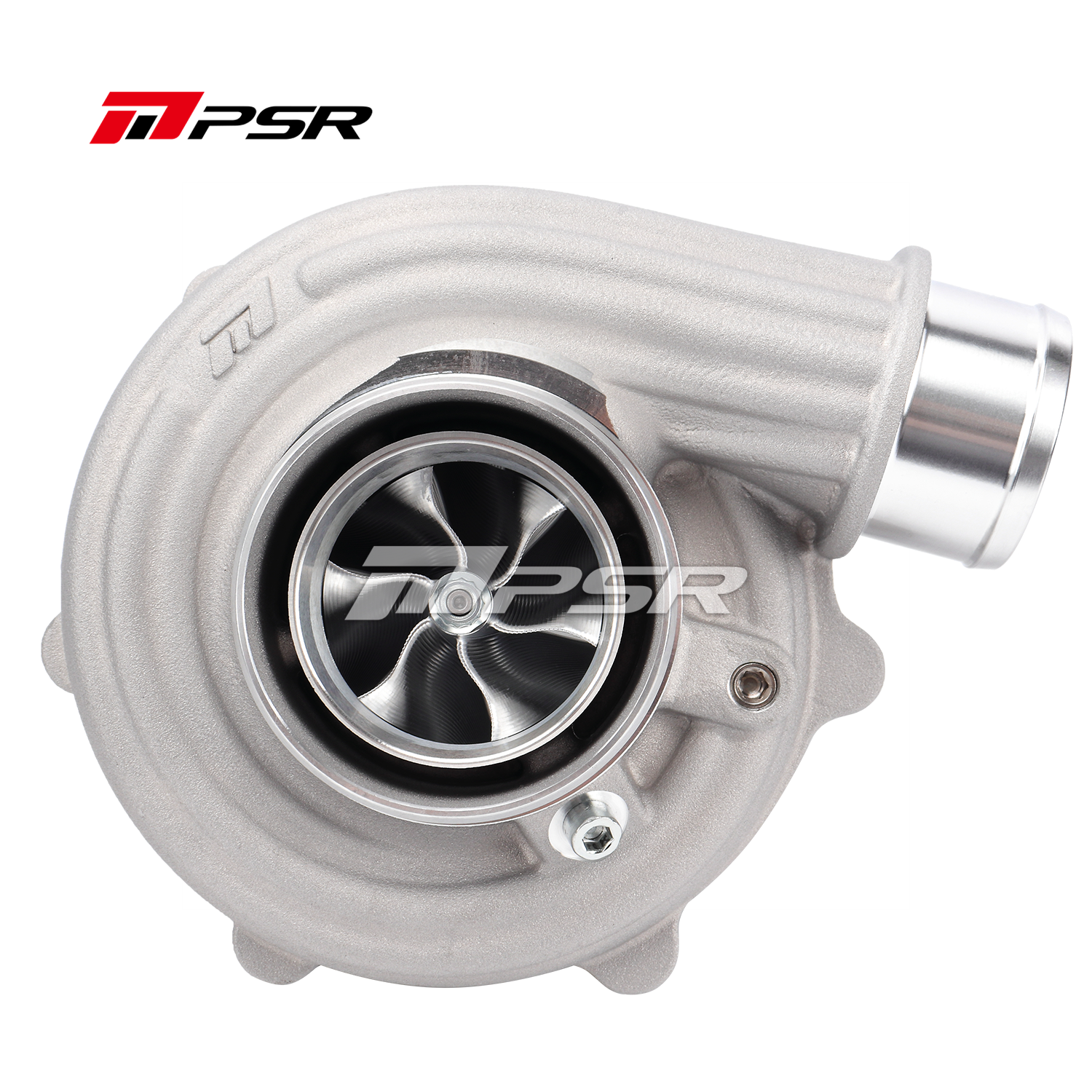

PSR 6862A HP Rating 1050 Dual Ball Bearing Turbocharger
PSR 6862A HP Rating 1050 Dual Ball Bearing Turbocharger
PSR 6862A HP Rating 1050 Dual Ball Bearing Turbocharger
PSR 6862A HP Rating 1050 Dual Ball Bearing Turbocharger
PSR 6862A HP Rating 1050 Dual Ball Bearing Turbocharger

PSR 6862A HP Rating 1050 Dual Ball Bearing Turbocharger

SKU: 102294000
icon
Display Area for Options
No option or configuration is disabled
$1,325.00
$1,325.00
Compressor Housing Option: Standard
Turbine Housing Options: T3 .83 A/R V Band
Subtotal: $1,325.00
PSR 6862A HP Rating 1050 Dual Ball Bearing Turbocharger

PSR 6862A HP Rating 1050 Dual Ball Bearing Turbocharger

$1,325.00
PSR 6862A HP Rating 1050 Dual Ball Bearing Turbocharger
PSR 6862A HP Rating 1050 Dual Ball Bearing Turbocharger
PSR 6862A HP Rating 1050 Dual Ball Bearing Turbocharger
PSR 6862A HP Rating 1050 Dual Ball Bearing Turbocharger
PSR 6862A HP Rating 1050 Dual Ball Bearing Turbocharger

PSR 6862A HP Rating 1050 Dual Ball Bearing Turbocharger

$1,325.00
Compressor Housing Option: Standard
Turbine Housing Options: T3 .83 A/R V Band
Description
Description
x
  • Curved point milled billet compressor wheel for improved airflow and efficiency
  • A series Turbine wheel with slim nose and hub for reduced weight and faster spool-up
  • Decentered blades on turbine wheel for improved gas flow ability and reduced turbo lag
  • Newly designed Anti-Surge compressor housings with integrated speed sensor port and boost reference port for improved performance monitoring and control
  • Dual ball bearing system for improved durability, stability, and reduced friction resulting in enhanced performance and longevity
  • Curved Point Milled Compressor Wheel: 68*84mm
  • A Series Turbine Wheel: 68*62mm
  • Compressor Inlet: 4” Hose
  • Compressor Outlet: 2.5” Hose
  • Turbine Inlet: T3/T4/V-BAND
  • Turbine Outlet: 3” V-Band
  • Water Ports: 2-M14 x 1.5
  • Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
  • Oil Drain: Std T3
  • Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp
